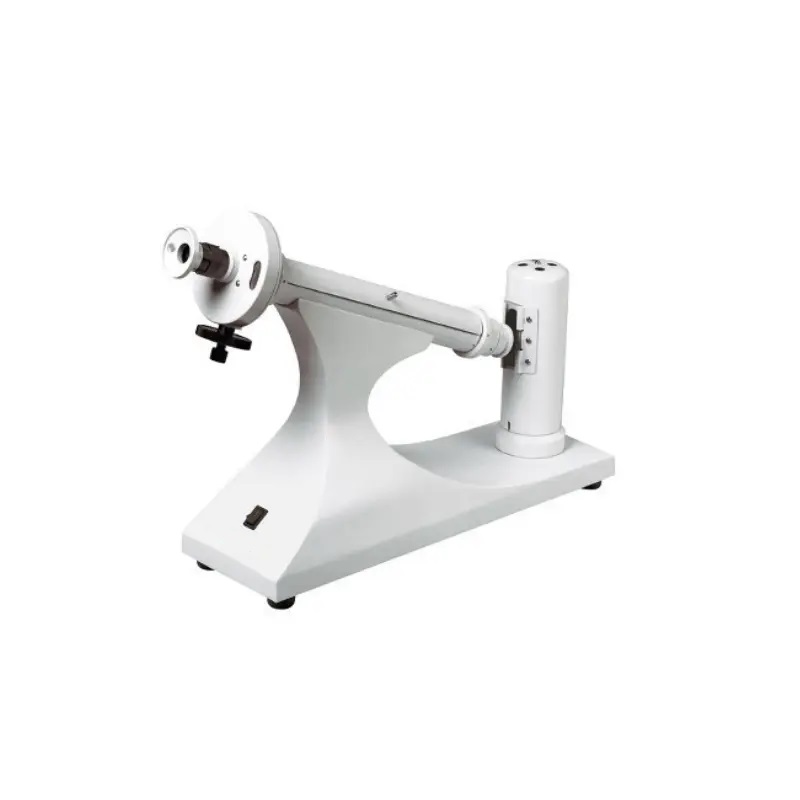

Disc Polarimeter

+ Free Shipping

A polarimeter is a device for determining the polarisation direction or rotation of light or an optically active substance.

Features:



  1. Easy to adjust scale with Streamline Body.
  2. Improve measurement error for optimized mould structure and precision scale.
  3. Delay operation time.



Technical Parameters:



Parameters/ModelWXG-4WXG-4L
Measurement modesOptical rotation
Light sourceSodium   Lamp + interference filterLED + interference filter
Measurement range±180°
Wavelength589.44nmNA
Division Value
Dial Venire Value in Reading0.05°
Magnifying Factor of the Magnifying Glass4times
Test Tube100mm/200mm (regular)
Dimensions/Weight600x220x400mm/7.6Kg

Standard Accessories:





1 tset tube:100&200mm.

2 LED light or Sodinum light.



Optional Accessories:



The reading of quartz tube includes ±1°, ±5°, ±7°, ±34°, ±68°, for customers to choose.
