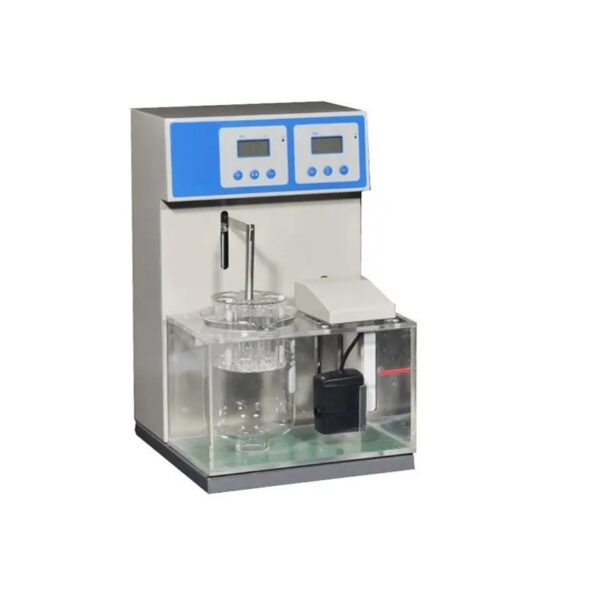

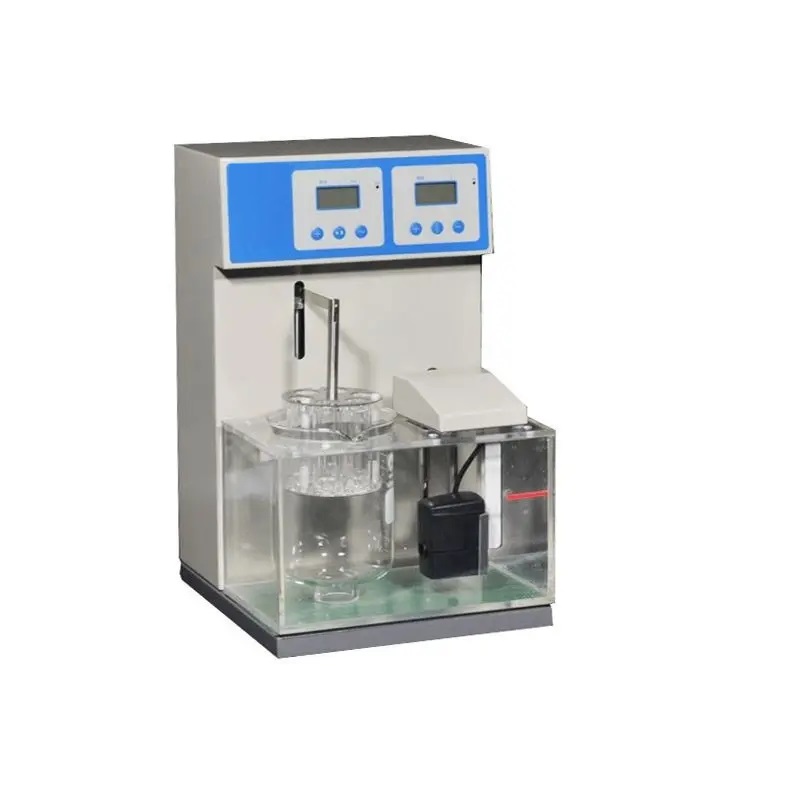

JY-BJ-I Disintegration Tester

Technical indexes:

△ Temperature prefabrication range: room temperature:～50℃, display resolution:0.1℃.

△  Temperature control accuracy: ±0.3℃

△  Timing prefabrication range: 1min～900min

△  Time control accuracy: ±0.5min

△  Work noise: ＜60db

△  Number of lifting baskets: 1 set

△  Lifting frequency of basket: (30～32) times/min.

△  Lifting distance of basket: (55±1) mm

△  Minimum spacing from screen to beaker bottom: 25mm±2mm

△  Mesh size: standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
△  Power supply：220V50Hz

△  Total power：600W

△  Overall dimensions：L*W*H  260mm*300mm*440mm

Main features:

①  1 set of basket.

② The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia).

High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.

③ The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.

④  It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.

⑤ The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.
