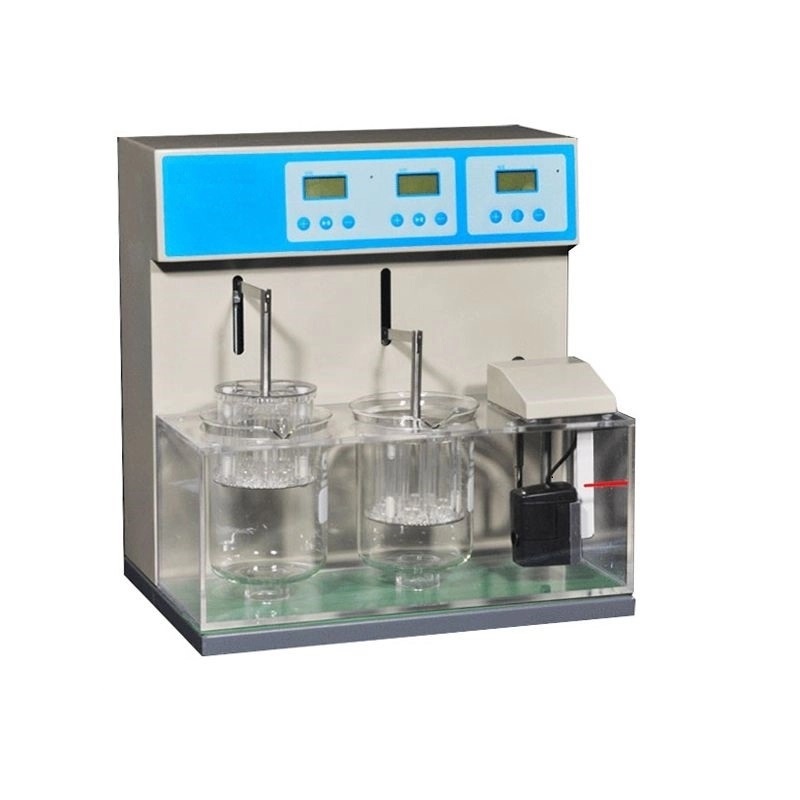

JY-BJ-II Disintegration Tester

Technical indexes:

△ Temperature prefabrication range: room temperature:～50℃, display resolution:0.1℃.

△ Temperature control accuracy: ±0.3℃

△ Timing prefabrication range: 1min～900min

△ Time control accuracy: ±0.5min

△ Work noise: ＜60db

△ Number of lifting baskets: 2 sets

△ Lifting frequency of basket: (30～32) times/min.

△ Lifting distance of basket: (55±1) mm

△ Minimum spacing from screen to beaker bottom: 25mm±2mm

△ Mesh size: standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
△ Power supply：220V50Hz

△ Total power：600W

△ Overall dimensions：L*W*H  400mm*320mm*440mm

Main features:

◎ Double-basket working position system measures disintegration time limit.

◎ 2 sets of baskets, which can conduct independent disintegration experiment respectively.

◎ Electronic temperature sensor can display and monitor various points in water bath case and the temperature in the beaker. High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.

◎The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). It can also reset the preset temperature again at any time.

◎ The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.

◎ It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.

◎ The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.
