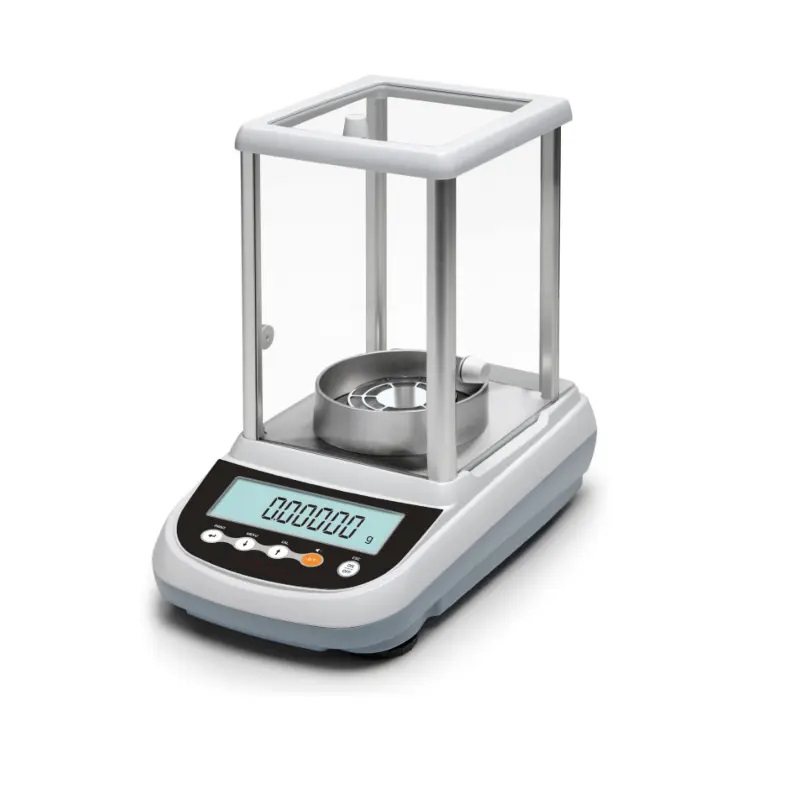

JY-FA-SEM Series 0.01mg Semi-Micro Analytical Balance

+ Free Shipping

0.001mg/0.01mg Micro Balance

Category:

Function



★ Recipe database: 99 datas can be stored

★ Automatic internal calibration

★ Tare/counting/percentage test/animal weighing

★ Baud rate is adjustable/ Density function

★ unit conversion (g/mg/ct/oz)…

★ Multi-Language : English/ German/French/Italian/Spanish/Portuguese

★ Keep weight values in GLP/ISO format,Includes date, time,and serial number

★ Plastic protection cover for keypad

★ Sensitivity/speed adjustable

★ Overload alarm/JY-FAult alarm/level indicator



Optional accessories



★ ION-A15 Static Eliminator

★ Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)

★ DPP-250-BT Bluetooth printer for system (AC013)

★ TLP-50 serial printer with date/time (C054)

★ DPP-250 serial printer (AC007)

★ STAT serial printer with statistical function (AC022)

★ Alphanumeric external keyboard (AC005)

★ Serial to USB converter (E1002)

★ Serial cable for serial output to printer or computer (E743)

★ JY-FActory calibration certificate (BL0333)



Technical data



★ Range drift (+10… +30°C): +/– 2ppm/°C

★ Dimensions: length×width×height (mm): 345×215×345

★ Weighing room size: length × width × height (mm): 162 × 171 × 225

★ External electronic box size: length × width × height (mm): 175 × 105 × 50 (mm), weight 500 grams

★ power supply 110-230 Vac, 50/60 Hz: output 24 V / 500 mA / 13 VA

★ Net weight: 7 kg



Product specifications



JY-FA(SEM)Series
ModelJY-FA1265SEMJY-FA2285SEMJY-FA22105SEMJY-FA125SEM-IONJY-FA165SEM-IONJY-FA205SEM-ION
Capacity(g)62g/120g82g/220g102g/220g122g162g210g
Resolution(g)0.01mg/0.1mg0.01mg
Min weighing(g)60mg100mg100mg
Stable Time≤6s
DisplayLCD(white back light with black font)
Pan sizeΦ80mm
Operation temp5-25℃ 20-80% humidity
Repeat ability0.03mg/0.1mg0.05mg/0.1mg0.05mg0.05mg
Liner±0.08/±0.2mg±0.1/ ±0.2mg±0.1mg±0.1mg
Draft shield size152mm×160mm×225mm
Cal.weightInternal Calibration
OptionPrinter
Dimension345×215×345mm
G.N . weight8.25kg/5.8kg8.3kg/5.85kg
IONISEROptionStandard
LanguageItalian/English/Portugues/Deutsch/France/Espanol
Packing Size510x400x620mm(No pallet)
Power Supply110-230V  50/60Hz Out DC 12V 1A
