Applicable standards:
- National standard( Chinese codex ) /2015
- Industry standard(Dissolution tester )JB/T 20105-2007
Features:

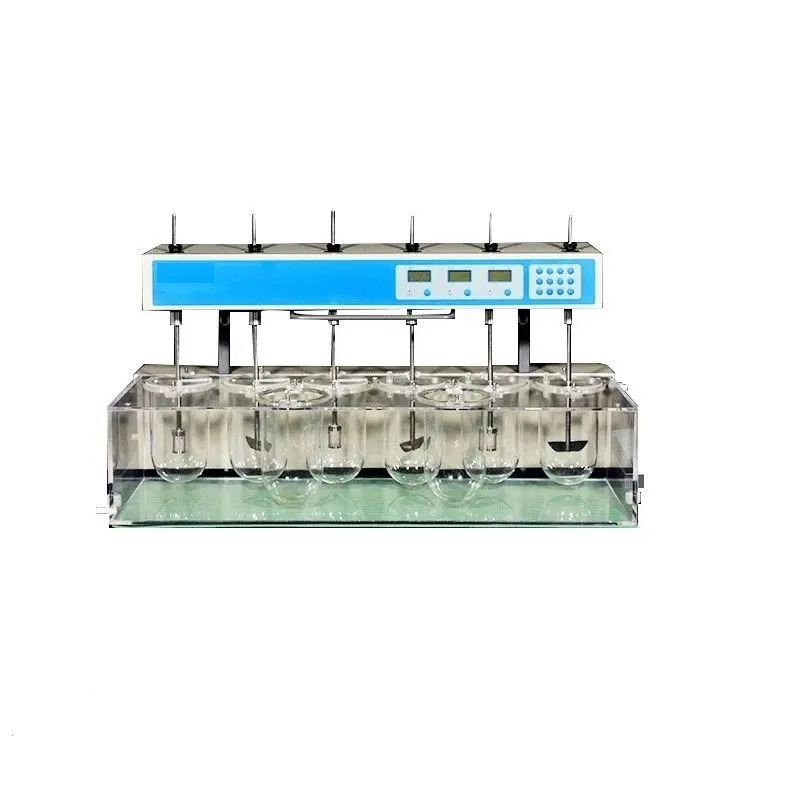

- It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
- It can test by self and alarm automatically. The dissolution parameters of’ Chinese codex 2010′ are stored in and can be taken out at anytime.
- Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
- Speed range (20~200)rpm
- Speed accuracy ±2rpm
- Temperature range ambient to +45.0℃
- Temperature Stability ±0.3℃
- Preset timing nine points (1~999)min
- Time accuracy ±0.5mm
- Paddle radial run-out ±0.5mm
- Basket radial run-out ±1.0mm
- Power 220V/50Hz/1200W or 110V/60Hz/1200W
- Dimension (960*440*480)mm3
