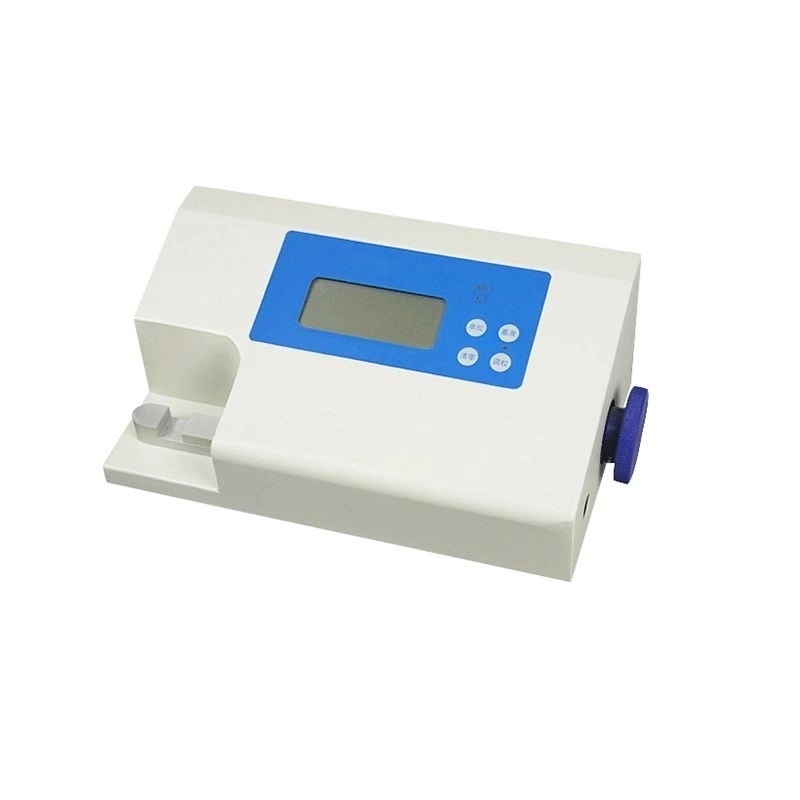

JY-YD-I Hardness Tester

Applicable standard：JB/T20104-2013

Technical indexes:

△  Hardness test range：2-196N  0.2KG-20KG

△  Resolution：0.1N  0.01Kg

△  Hardness measurement accuracy：range:±0.5%

△  Tablet measurement diameter：2-20mm

△  Machine power: 10W

△  Overall dimensions：L*W*H  280mm*180mm*110mm

Main features:

①  High-precision pressure sensor ensures the precision and reproducibility of test.

② Manual loading and manual tablet compressing, easy operation.

③  The system can realize automatic display, automatic latching, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.

④  Provide the function of unit conversion, which can realize the conversion both before or after the tests.

⑤ The user can use the standard weight to correct the measurement accuracy of the instrument regularly, which is very convenient.
