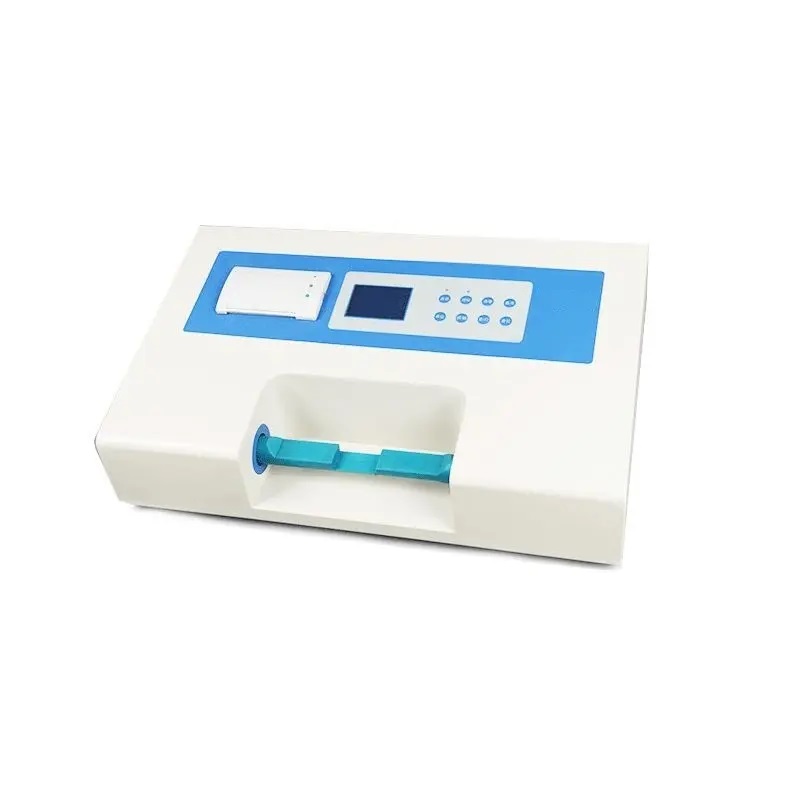

JY-YD-III Hardness Tester

Applicable standard：JB/T20104-2013

Technical indexes:

△  Hardness test range：2-200N  0.2KG-20KG  【Srnsors equipped with 500N(50KG) 】

△  Resolution：0.1N  0.01Kg

△  Hardness measurement accuracy：range:±0.5%

△  Tablet measurement diameter：2-40mm

△  Repeated measurement error：±1%

△  Number of testing tablets in each group：≤100 tablets

△  Measuring unit: Newton (N)

Kilogram force(Kgf) (1Kgf=9.81N)

△  Interface：Standard serial printing interface, with its own micro-printer.

△  Overall dimensions：L*W*H  500mm*400mm*160mm

Main features of tablet hardness tester:

①  High-precision pressure sensor ensures the precision and reproducibility of test.

②  High-definition LCD is adopted, the display contents are rich; users can enjoy intelligent operations according to the screen tips, Chinese character hint and quantitative index are provided for each operational process.

③ Optional for measuring mode: Manual single tablet/automatic continuation.

④ The system can realize automatic tablet compressing, automatic display, automatic latching, automatic reset, automatic cycle test, automatic linear error correction and automatic fault diagnosis.

⑤ Strong data processing ability; statistics, analysis, printing and display are available for test result. It can submit the reports of maximum and minimum values, standard deviation and range of change of the test sample.

⑥ Automatic calculation of tablet return travel can compress your test duty time.

⑦ One-key conversion of measuring unit (Newton-Kilogram)

⑧ New type front paper change mini-printer.

⑨ Convenient and efficient measurement of tablet diameter.
