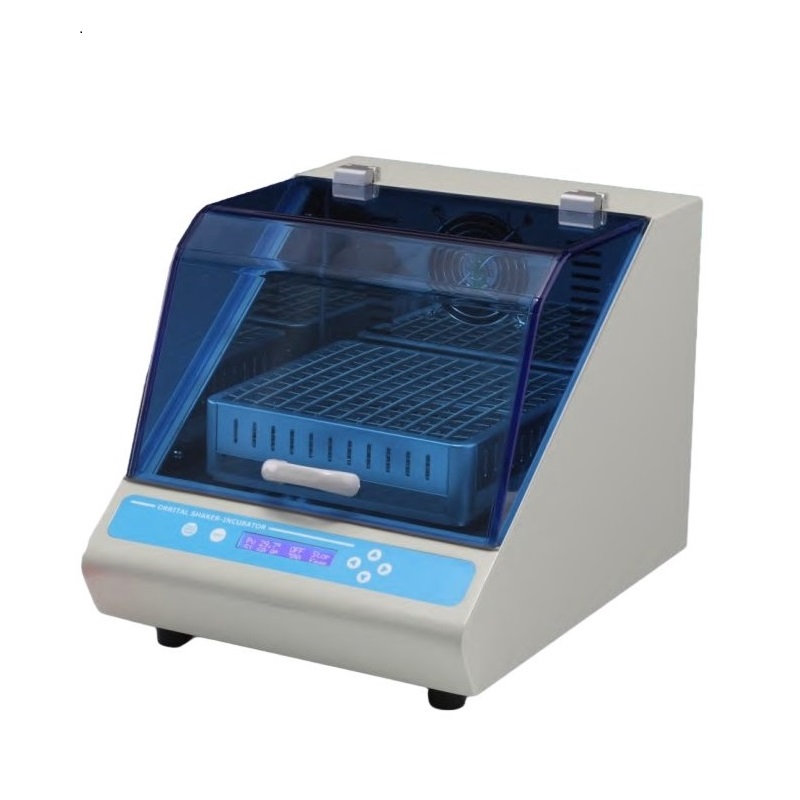

Orbital Shaker-Incubator

+ Free Shipping



Model:JY-TOS20

Description:

Orbital Shaker-Incubator is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program. Seven interchangeable platforms allow it mix and culture samples in flask, petri dish, tubes, Elisa plates, and etc. Built–in microprocessor thermo controller provides constant temperature control in the incubator chamber. It is extremely easy to operate, with very straightforward setup of temperature, speed and time.

Category:

Features:

  • Instantly display operation information(time, temperature and speed) on

the LCD screen.

  • Gentle and reliable shaking with direct brushless DC motor.
  • Running safely –-heating and shaking will be automatically stopped once

the lid is open.

  • Seven interchangeable platforms can be chosen for variety demands.
  • Auto restart in case of power failure.
  • Over-heating protection device is included.
  • Built-in temperature calibration function.
  • Compact, only 421mmx320mm(DXW)



Parameters:

        Type

Parameter

MS100
Temperature setting range0°C ~60°C
Temperature control rangeRT.+5°C ~60°C
Time range1min ~ 99h59min/∞
Temp. accuracy≤±0.5°C(@37°C)
Display accuracy0.1°C
Temp. uniformity≤±0.5°C(@37°C)
Shaking range50~300rpm
Orbit20mm
Platform dimension230x230mm
Internal chamber height182mm
Load capacity4.0kg
Heating time≤15min(from 25°C to 60°C)
Auto resume to runYes
Power350W
VoltageAC220V/50-60HZ
Fuse250V  3A  Ф5×20
Dimension(mm)421x320x338
Weight(kg)18.5







Optional Platforms

TypeDescription
PF-1Platform with clamps for 5×250ml conical flask
PF-2Platform with clamps for 9×100ml conical flask
PF-3Platform with clamps for 10×50ml tube
PF-4Platform with clamps for 18×15ml tube
PF-5Platform with spring holder
PF-6Platform for 4pcs Elisa plates or deep-well plates
PF-7Flat platform for 5pcs petri dishes
