Features:

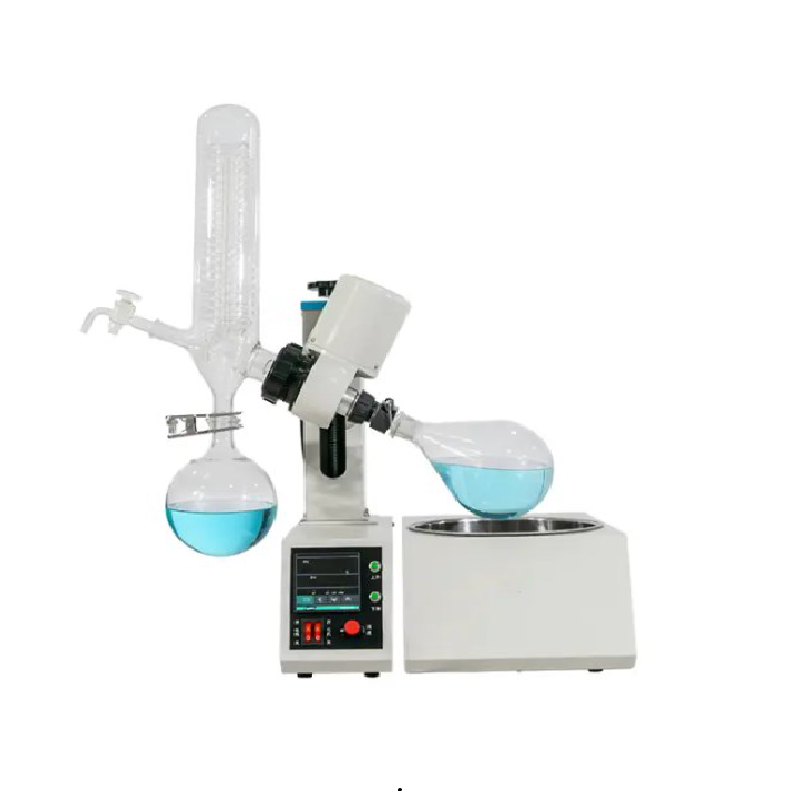

The evaporation bottle rotates at a constant speed and the water bath is heated at a constant temperature. Under this condition: the material forms a large-area uniform thin film on the inner wall of the evaporation bottle for quick evaporation. The evaporation efficiency can be improved under vacuum conditions (a vacuum device needs to be connected). When the solvent vapor passes through the glass condenser coil, the vapor is cooled to a liquid ( a cooling device need to be connected) and recycled in a collection flask.
This series of products needs to be equipped with vacuum devices (circulating water type, rotary vane type, diaphragm type and other vacuum pumps), or cooling and circulating devices to form a system devices.
Basic configuration:
• The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE materials, which have stable performance and are not easy to react with the materials.
• The stent is made of cold plate anti-corrosive spray + aluminum alloy material, and the bath is made of 304 stainless steel.
• The sealing system uses PTFE rotation axis + fluororubber compound sealing
• The piston-type feeding valve is sleeved with PTFE extension tube, which can be continuously fed to the evaporation bottle under vacuum status.
• Upright double-layer serpentine coil as condenser.
• Rotating and heating is controlled by power switch, which is a double-joint tilt button (ON-OFF).
• Electronic stepless speed regulation, fine-adjustment by knob.
• Thermstatic bath with temperature digital display function, Cu50 sensor + stainless steel probe at the bottom of the pot.
• The main engine is lifted electrically, easily operates by up and down button (also can be lifted by hand wheel)
• Rotating and heating double fuses safety protection.
Technical parameters:
| Model | RE-52 |
| Voltage/Frequency | 220V/50HZ |
| Total Power | 1045W |
| Rotary motor power | 30W |
| Lifting motor power | 15W1/15 speed deceleration power increasing |
| Heating power | 1000W |
| Vacuum | 0.098Mpa |
| Rotary flask volume | eggplant shape 1000mlΦ131mm/24#standard port |
| Collecting flask volume | spherical shape 500mlΦ105mm/24#standard port |
| Rotary speed | 0-120rpm/min |
| Temperature control range | Room temperature-99℃ |
| Temperature control accuracy | ±1℃ |
| The lifting stroke of main equipment | 150mm |
| Condenser dimension | Φ85×450H(mm) upper 29# standard port with glass nozzle, lower 29#standard stopper |
| Condensing area | 0.17m2 |
| Caliber of four-way bottle | Upper 29#standard port, lower 24# standard stopper, left 19#standard port, right 24# standard stopper |
| Material feeding valve | 19#standard plug valve, feeding valve (pagoda joint) with 10mm outer diameter |
| Vacuum nozzle | 29#standard stopper, vacuum nozzle (pagoda joint) with 10mm outer diameter |
| In and out circulating nozzle of condenser coil | pagoda joint with 12mm outer diameter |
| Bath dimension/weight | Φ220×120H(mm) about 4.5L 3.5KG |
| Overall dimension(W*D*H) | 640×430×(860-1010)mm |
| Net weight | 16KG |
| Packing dimension | 600×460×470mm carton package 0.13m³ |
| Packing weight | 19.5KG |
